700m Depth 140 - 400mm Bore Dia Water Well Drilling Machine 132KW Cummins Engine
Machine Introduction
The RCF700C hydraulic drilling rig stands out for its wide drilling diameter ( 140-400 mm ) and ability to penetrate deep into the ground ( up to 700 m ), making it suitable for a variety of complex drilling tasks. Its operational efficiency and stability have been significantly improved, thanks to its wide gas consumption and operating pressure range ( 17 - 42 m3 / min and 1.7 - 3.5 MPa ), ensuring efficient and stable drilling processes. In addition, the RCF700C offers a variety of pipe diameters and lengths, as well as powerful lifting capabilities and adjustable hydraulic legs, enhancing operational flexibility and safety. Overall, the RCF700C is an efficient, versatile drilling rig suitable for a wide range of drilling projects, providing users with superior performance and safety.
Technical Parameters
| Bore diameter(Hammer) | 140-400mm |
| Bore depth | 700m |
| Air consumption | 17-42m³/min |
| Air pressure | 1.7-3.5Mpa |
| Pipe diameter | 102/108/114mm |
| Pipe length | 1m/2m/3m/6m |
| Lifting force | 28T |
| Fast lifting speed | 20m/min |
| Fast feeding speed | 40m/min |
| One-time advance length | 6.6m |
| Max torque of rotary | 8500-11000Nm |
| Rotary speed | 45-140r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 600L/min or 850L/min (option) |
| High hydraulic leg | 1.7m |
| Feeding efficiency | 15-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 6200×2200×2650mm |
| Width of loading | 2.85m |
| Weight | 12000Kg |
| Diesel engine | 132KW Cummins engine |
| Drilling way | Air compressor drilling or mud pump drilling |
Machine Advantages
The rig has a flexible diameter range from 140 mm to 400 mm and can drill to a maximum depth of 700 m, making it suitable for a variety of deep hole drilling tasks. Its wide gas consumption and working pressure range ensure stable and efficient operation. Various pipe diameters and lengths are available to meet various engineering needs. The strong lifting force and fast feed rate effectively improve drilling efficiency, and the maximum torque is suitable for various formations to ensure smooth drilling. In addition, air compressor and mud pump flow options are available to meet different drilling methods and needs. Height - adjustable hydraulic legs provide strong support, high feed efficiency and travel speed, adapt to different working environments and terrain, and have good climbing performance, enhancing the flexibility of drilling projects. The body is moderate in size and equipped with a reliable Cummins diesel engine to ensure reliable power supply.

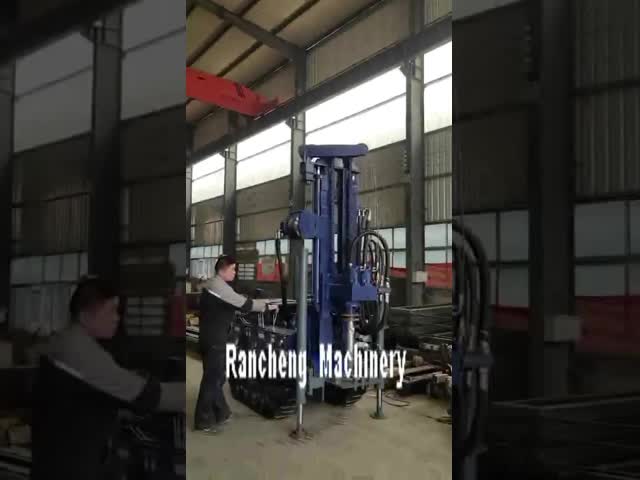

Machine Pictures
